INSTRUCTION FOR SET THE INDIVIDUAL COMBINATION

FOR SPORTING USE ONLY

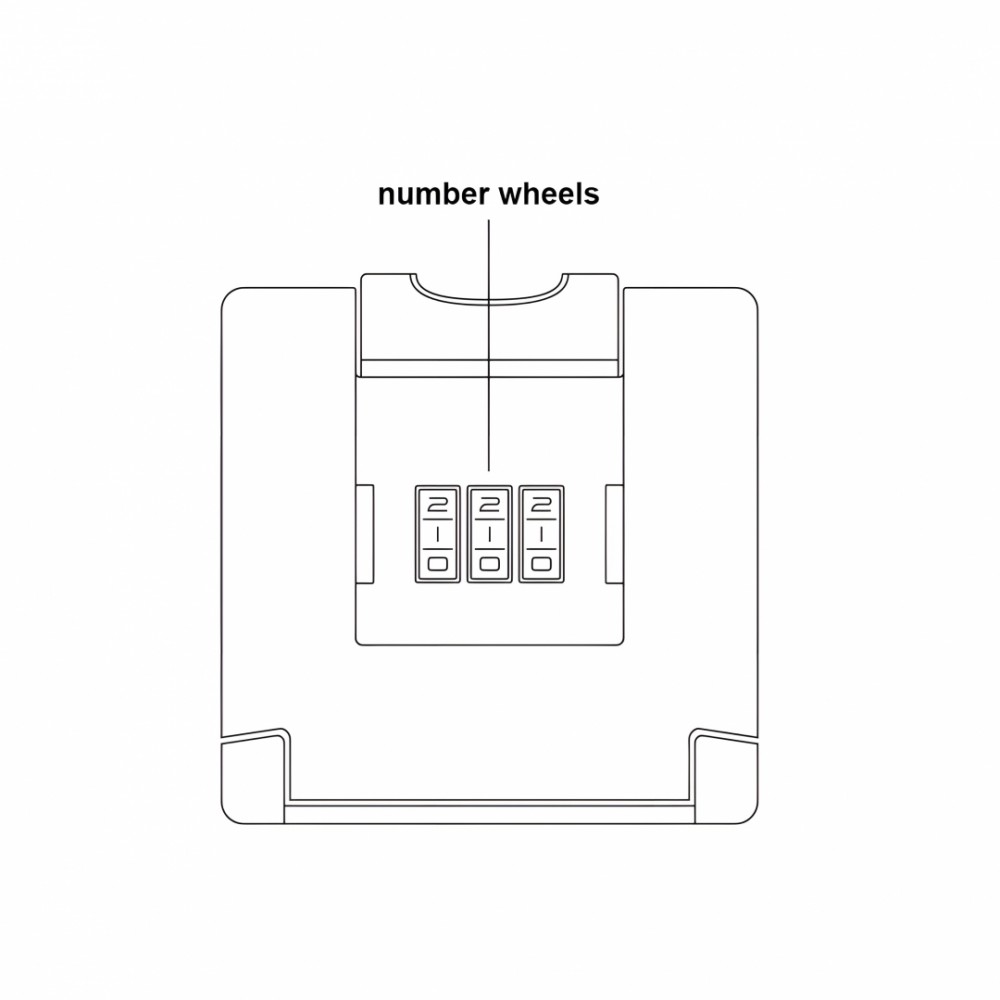

Number wheels

ATTENTION: by replacing the weapon in the case, make sure that both weapon and inner side of the case are perfectly dry and that there is no water or humidity, and that the weapon in perfectly clear and oiled with protective oil. However, it is advisable not to leave the weapon shut up in the case for too long.


  1. The original Code is “0-0-0”;
  2. In order to set an individual combination the lock needs to be in the opened position;
  3. Use a pointed item (i.e. a pen) to push the coder against the spring pressure first to the left, then downwards until the coder snaps;
  4. Turn the dials to the combination you wish to use
  5. Usign a pointed item again turn the coder back to its original position
  6. You have now set a code that will allow opening the lock.
  7. Make sure to remember the number you hare typed as combination.
  8. Test the combination before you put anything inside the case (open and close, change number, open and close)


OPENING AND LOCKING
Both for locking and opening the drowbolt the dials must be turned to the individually set code. The dials have a built-in “zero stop”. This feature enables you set your combination even in the dark. From this “zero stop” you can feel and count your code upwards one by one.

DCL TUTORIAL ON HOW TO REPLACE THE LOCK
